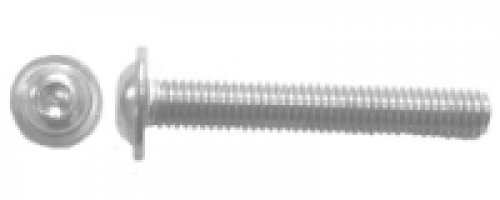

ISO 7380 M4x25 Flansh button head screws hexagon socket A2
TOP
|
| D | Dk max | k | s |
|---|---|---|---|
| M3 | 6,9 | 1,6 | 2 |
| M4 | 9,4 | 2,2 | 2,5 |
| M5 | 11,8 | 2,75 | 3 |
| M6 | 13,6 | 3,3 | 4 |
| M8 | 17,8 | 4,4 | 5 |
| M10 | 21,9 | 5,5 | 6 |
TECHNICAL DATA:
- Diameter : D = 4 mm
- Length : I = 4 - 60 mm
- Thread length : full thread
- Thread type: Metric
- Drive size: S 2,5 mm
- Drive shape: Hexagonal socket
- Head shape: pan head flansh
PROPERTIES:
- Material : Stailless steel A2 V2A Strength 70
- metallic matt, silver to grey
- Rustless, conditional acid-proof
