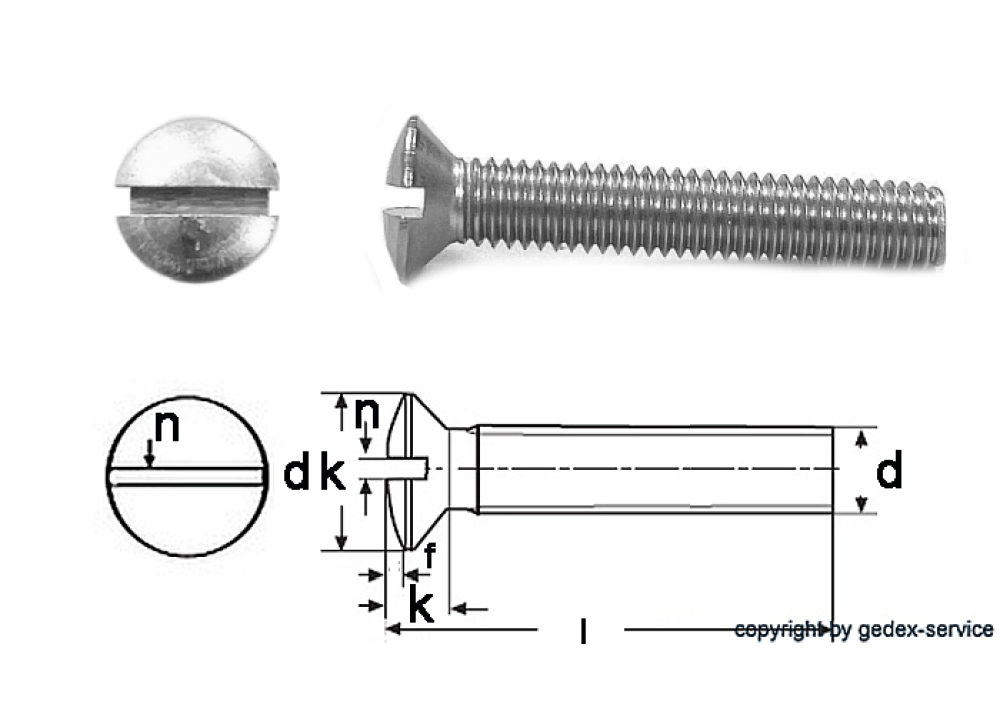

Slotted raised countersunk head screws DIN 964

DIN 964

d t min n f ca. k dk
M2 0,8 0,5 0,5 1,2 3,8
M2,5 1 0,6 0,6 1,5 4,7
M3 1,2 0,8 0,75 1,65 5,6
M4 16 1 1 2,2 7,5
M5 2 1,2 1,25 2,5 9,2
M6 2,4 1,6 1,5 3 11
M8 3,2 2 2 4 14,5
M10 4 2,5 2,5 5 18

Technical data:

  • Diameter (d) ) : M2 M2,5 M3 M4 M5 M6
  • Total length (l) : 5 - 100 mm
  • Fullthread
  • Type of thread : metric
  • Drive shape (drive) : Slot
  • Head shape : Raised countersunk head
  • strength class (Rm) : 500 N/mm²
